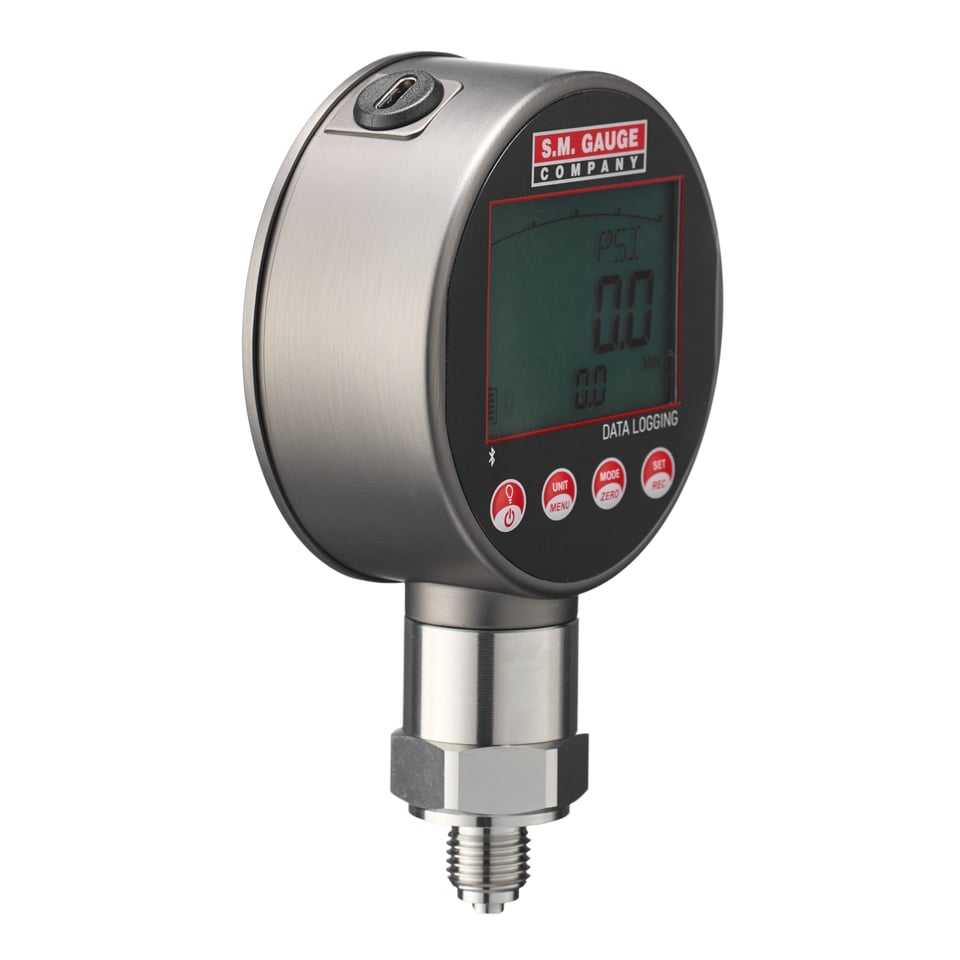

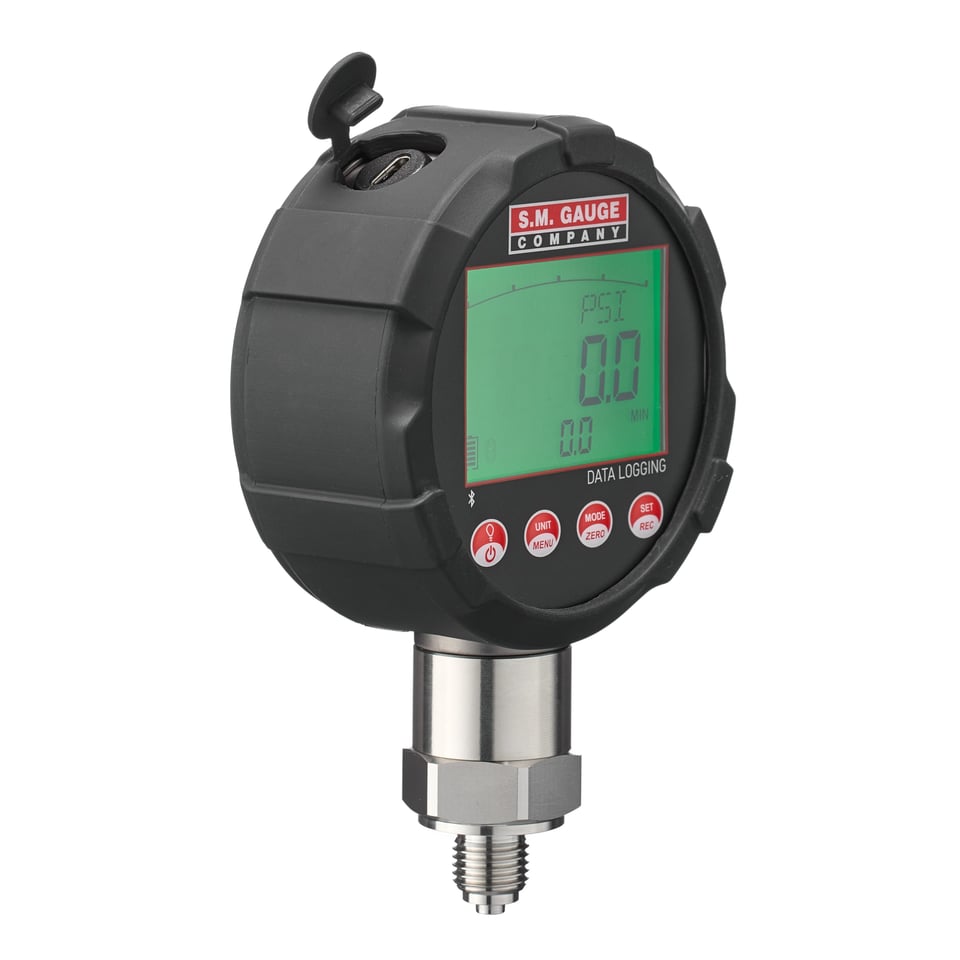

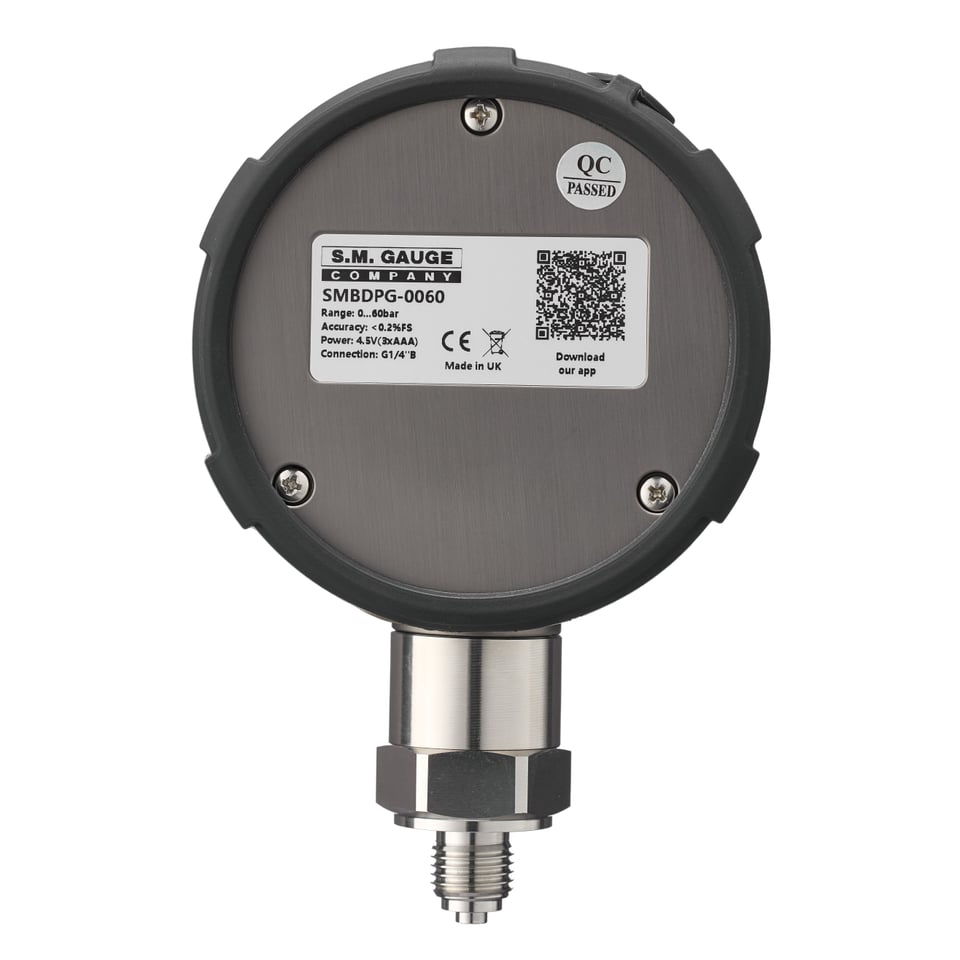

SMBDPG series digital pressure gauges are designed for both stationary and mobile measurement, display and data logging of pressure. They can be used as reference pressure gauges to simplify the checking, adjustment and calibration of other pressure measurement devices directly on site. Excellent protection against dust and moisture is provided by a membrane keypad with rubber buttons and rubber protective shroud.
Specification
• Accuracy <0.2% FS
• Ranges from -1 to 1000 bar
• Internal datalogging 27000 data records per test
• Space for 10 tests max 48h each
• Recording rate up 100ms

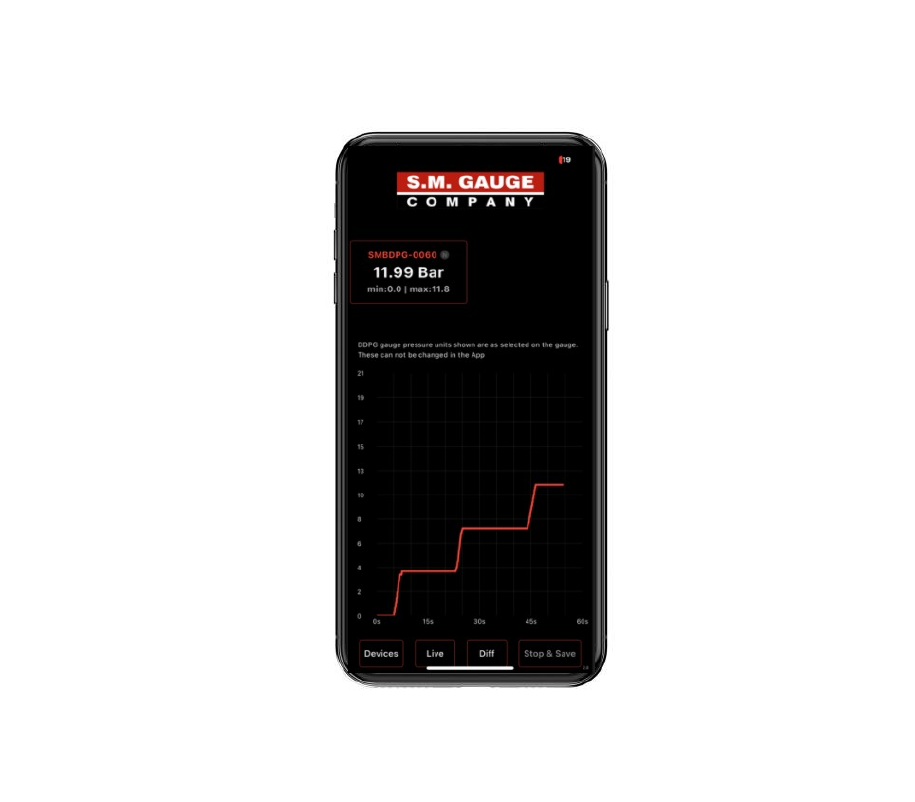

• Compatible with the Watchlog Bluetooth mobile app
• Back-lit display with bar graph & min/max
• Selectable display of temperature
• 3 x 1.5Vdc AAA battery supply
• Compact and Rugged IP67
• 270° Rotatable Display
Calibration Notes
- Traceable to National Standards
- UKAS
If you have any questions, please contact us on +44 (0) 117 965 4615 or visit our enquiry page and submit the form.
We can also customise our products to your specific needs.
