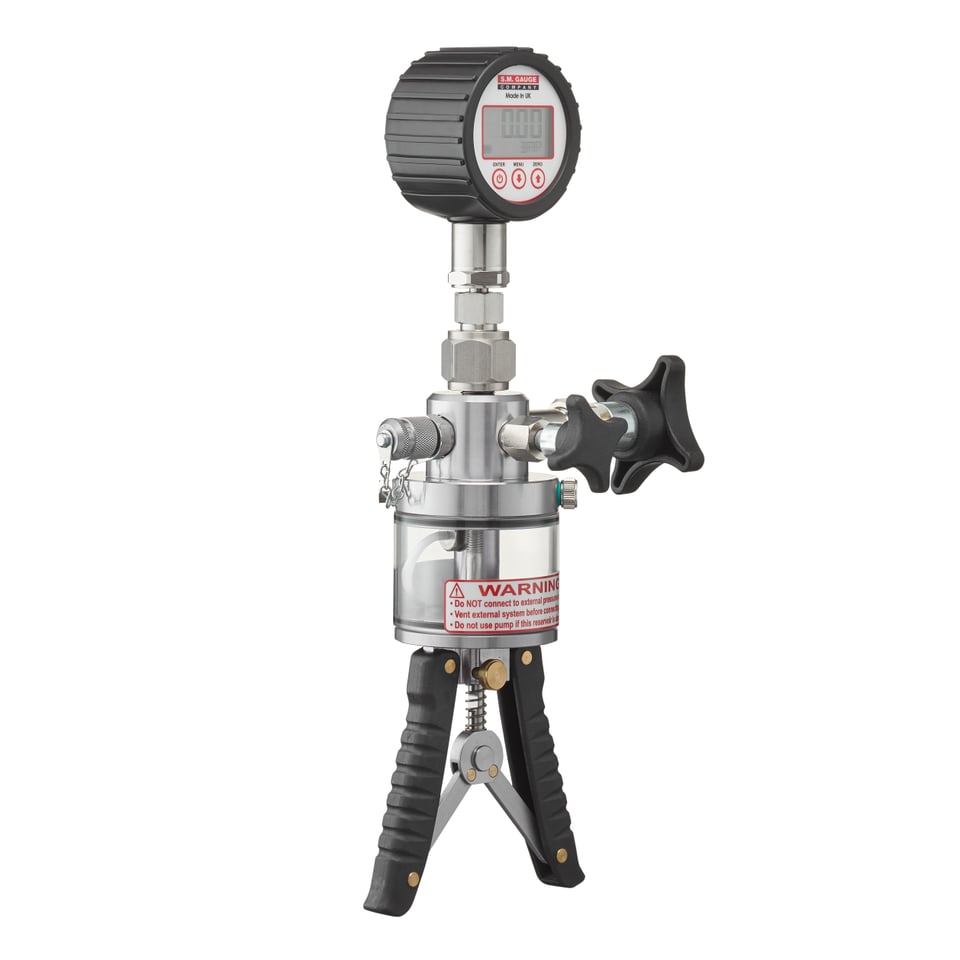

Scissor Action Hydraulic Hand Pump
Scissor Action Hydraulic Hand Pump

This scissor action hydraulic hand pump calibrator is a great test kit for hydraulically pressure testing ranges up to 1000 bar. Ideal for use by engineers in the process of testing and calibrating instruments without the need to remove them from site, it is also compact, portable and very light. The SMH700/1000 comes in 2 ranges and medium options: 700 bar or 1000 bar in hydraulic or water. Available on its own or in kit form.


  • Range: SMH700 (700 bar) & SMH1000 (1000 bar)
  • Medium: Hydraulic oil / water (optional) 100ml supplied
  • Reservoir capacity: 100cc
  • Fine adjustment valve
  • 500 mm flexible hose
  • 1/4″ BSP process and instrument adapters
  • Weight (approx): 1.8 Kg
  • Dimensions: 240 x 185 x 95 mm


  • Digital gauge with rubber shroud

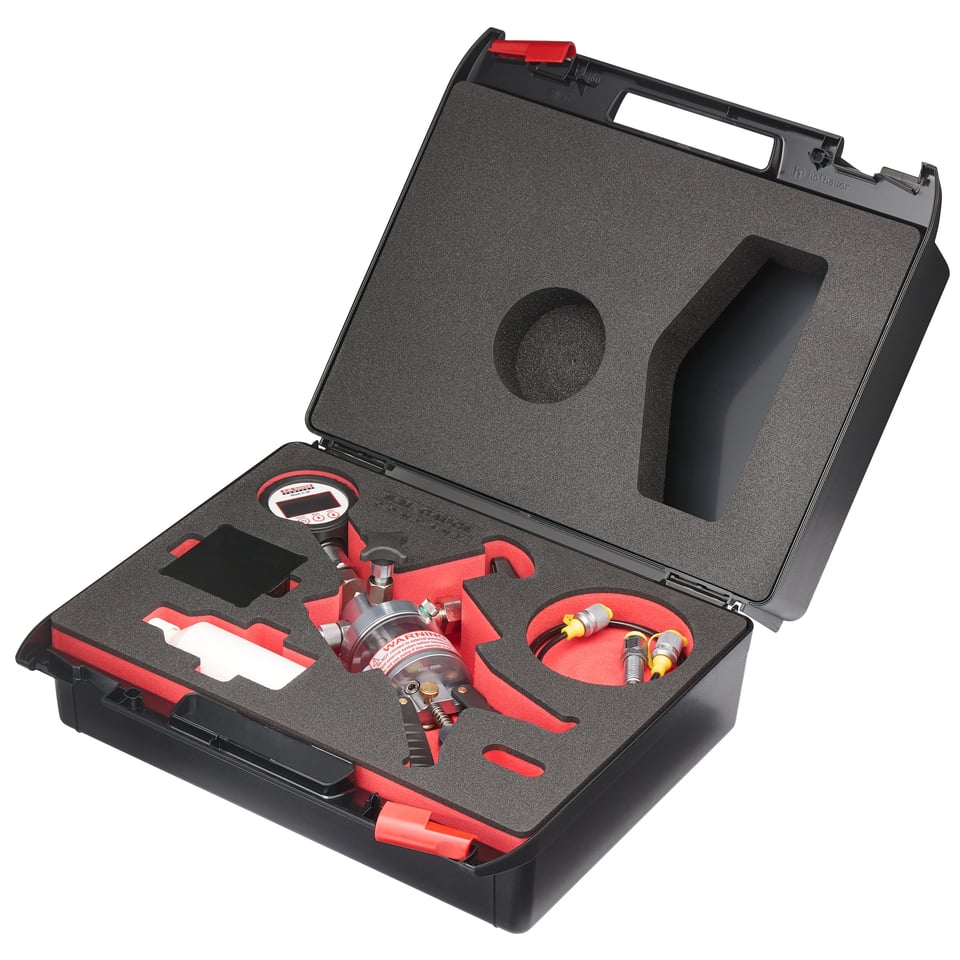

  • Carry case (445 x 380 x 130mm)
  • Custom name plate
  • Selection of BSP / NPT adaptors
  • Sealing washers

If you have any questions, please contact us on +44 (0) 117 965 4615 or visit our enquiry page and submit the form.

We can also customise our products to your specific needs.
