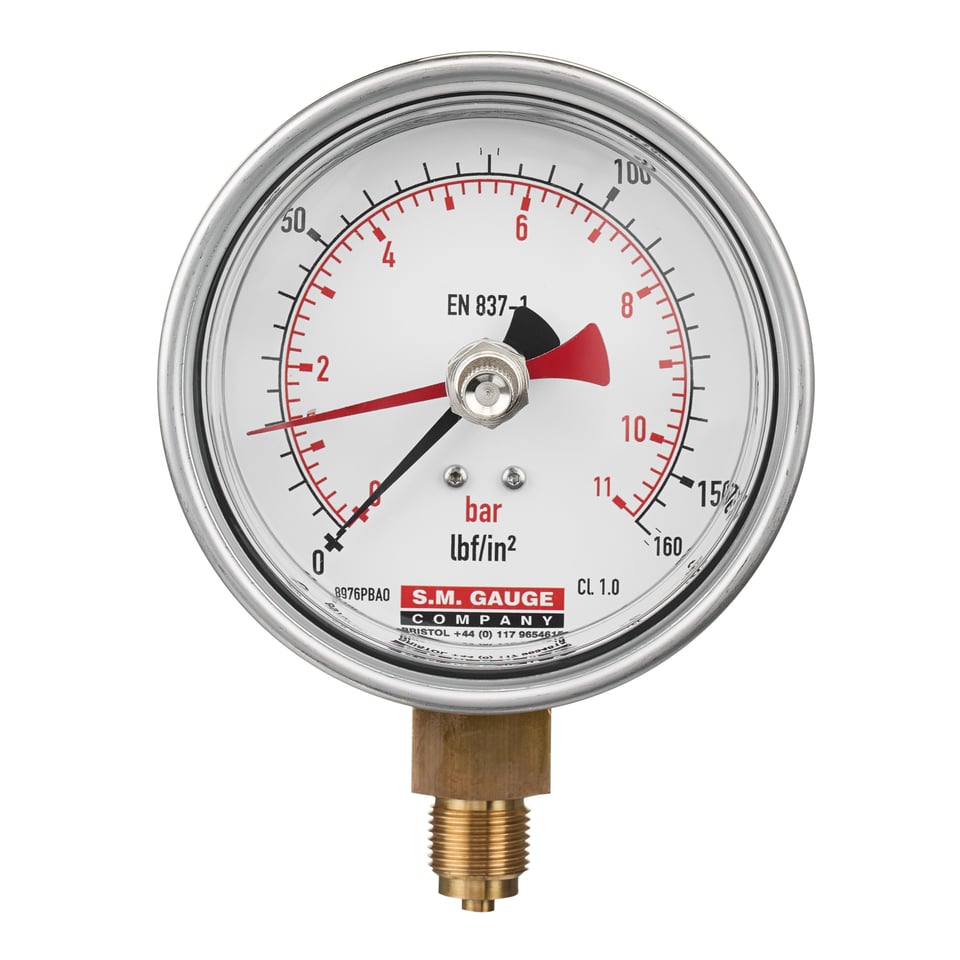

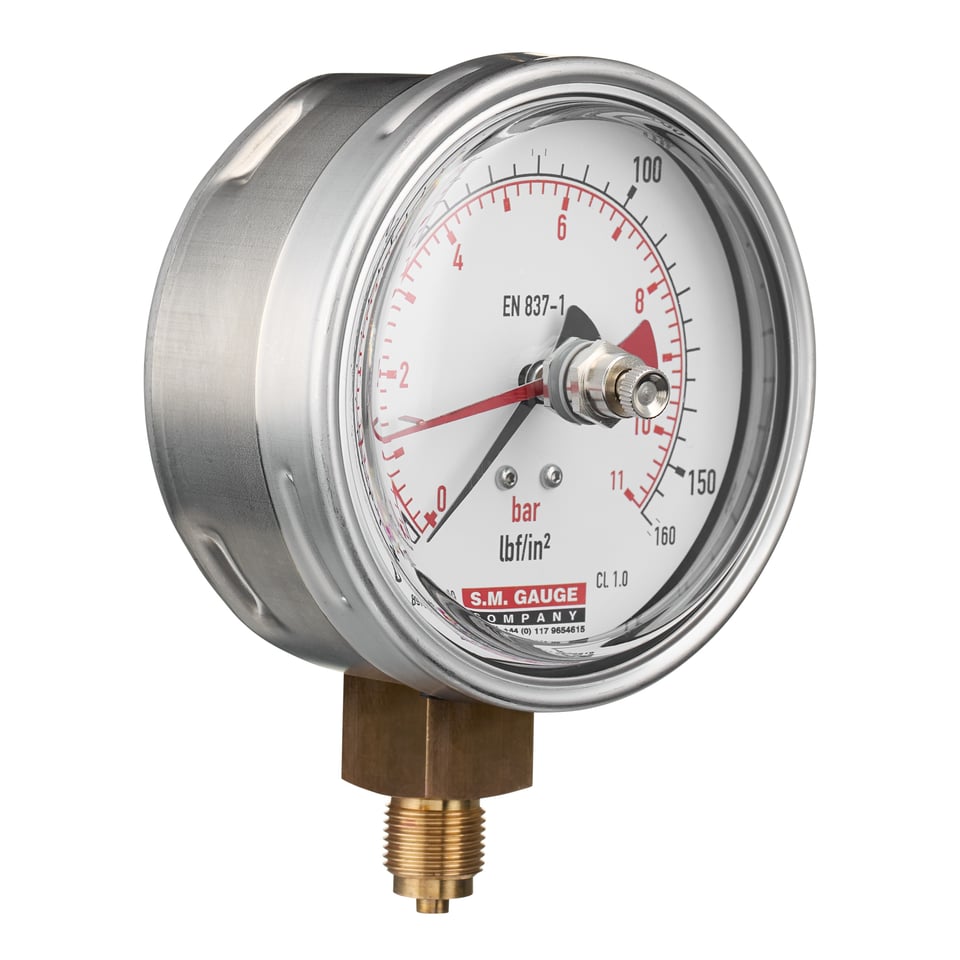

Max drag pointer, also know as tell tale pointer as design to record the max reading of the process. The existing gauge pointer carries the red drag pointer around the scale to the peak pressure and stays there.
Indicating pointers are for setting in a specific position on the scale, this is to indicate where the pressure should be reading if the system is set up and working correctly. The pointer on the gauge should mirror the position.
Specification
Indicating Pointers
- Available on 50, 63, 100, 160 & 200mm gauge sizes
- Red indicating pointer to show desired pressure setting
- Adjusting knob in centre of window
- Multiple indicating pointers (on certain models)
Max Drag Pointers
- Available on 63, 100, 160 & 200mm gauge sizes
- Red max drag pointer to show the peak pressure generated
- Re-settable adjustment key in centre of window
Min & Max Drag Pointers
- Available on 63, 100, 160 & 200mm gauge sizes
- Red max drag pointer to show the minimum and maximum pressure generated
- Re-settable adjustment key in centre of window
Options
- Different colours
- Window material
- Fixed key
Calibration Notes
Not applicable on this product.
If you have any questions, please contact us on +44 (0) 117 965 4615 or visit our enquiry page and submit the form.
We can also customise our products to your specific needs.
