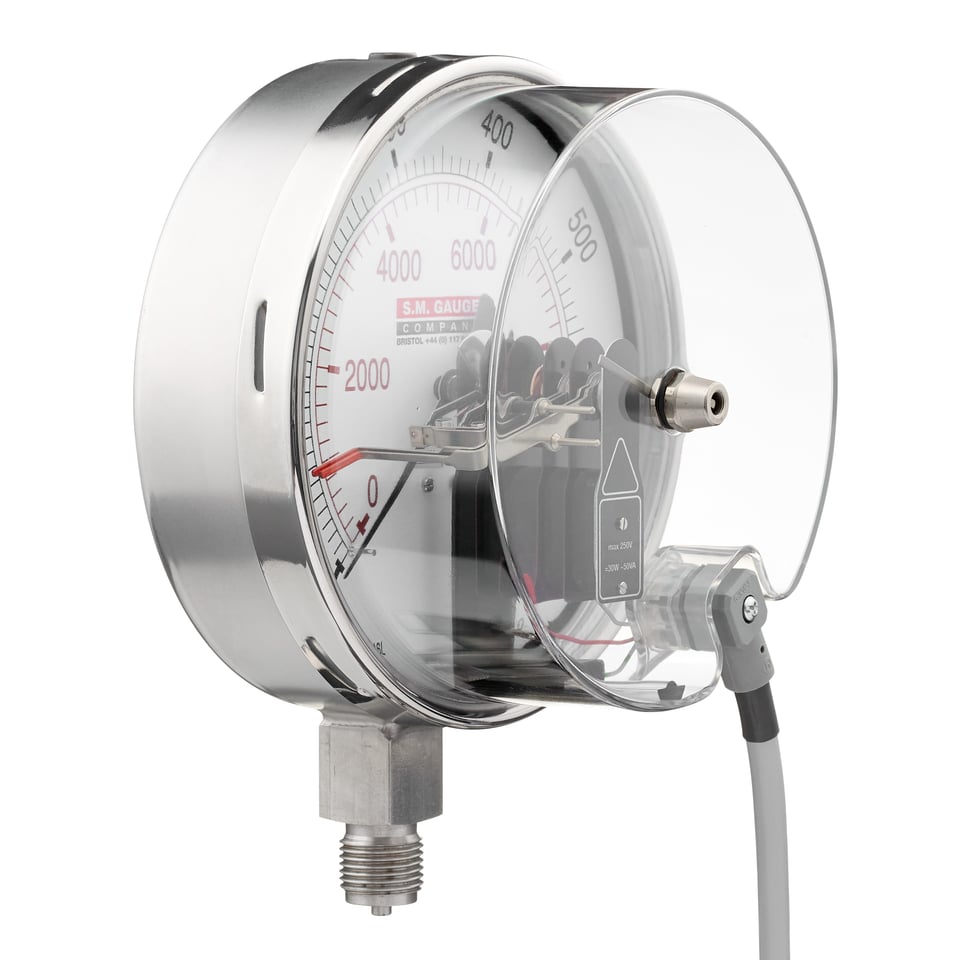

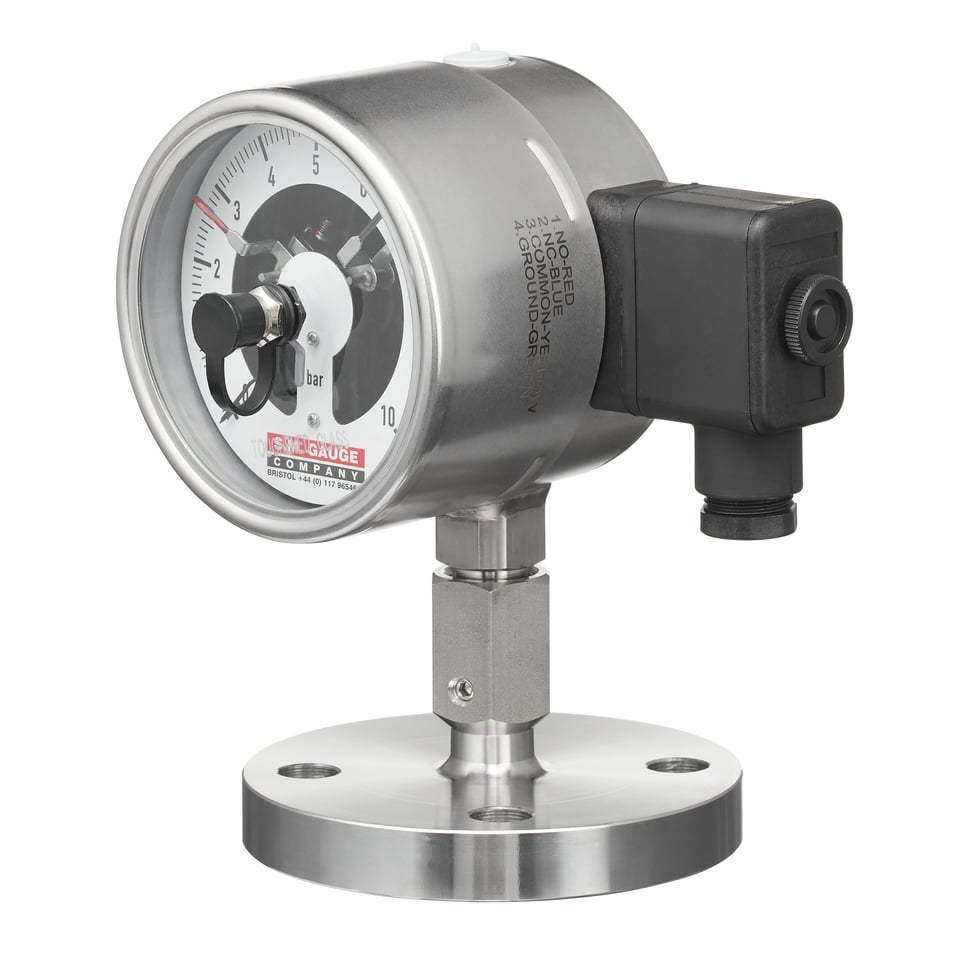

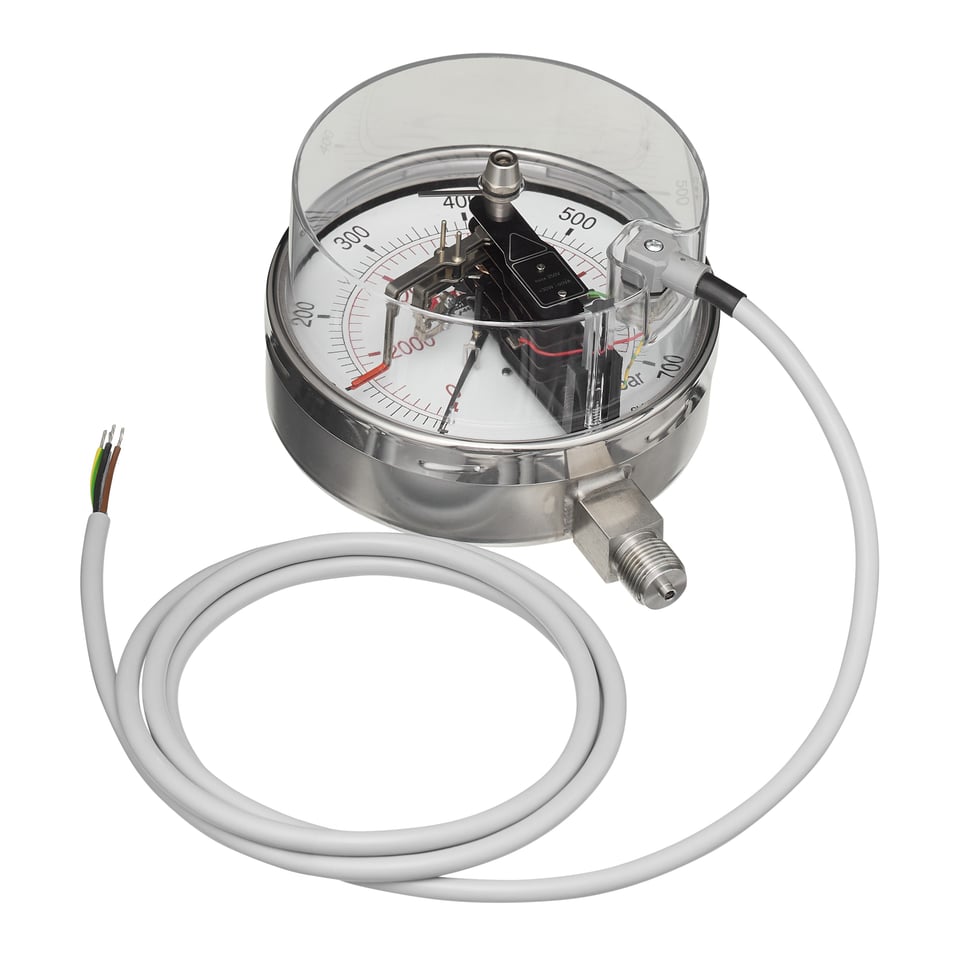

Electrical contact gauges are designed to open or close electrical circuits at the set limit values. The gauge has a contact arm which is moved by the gauge pointer, these can be single or double contact. Set points can be adjusted by the end user.
Specification
Low Action Contacts - used in the absence of high contact loads and vibrations.
- Nominal operating voltage: max. 250 V
- Making and breaking current: max. 0,7 A
- Breaking capacity: 10 W 18 VA
- Switching precision: approx. 0,5 % of final scale value
Snap Action Contacts - used under almost all operating conditions and are partially not affected by vibrations.
- Nominal operating voltage: max. 250 V
- Making and breaking current: max. 1,0 A
- Breaking capacity: 30 W 50 VA
- Switching precision: approx. 2-5 % of final scale value
Inductive Contacts - equipped with non touching proximity NAMUR switches. They should be preferable used with oil filled measuring instruments. With an ex-prooved isolating amplifier they can be used in explosion proof areas.
- Rated voltage: 8 V DC
- Switching precision: approx. 0,5 % of final scale value
Options
- Cable length to order
- Spare adjustment keys
- Case filling
If you have any questions, please contact us on +44 (0) 117 965 4615 or visit our enquiry page and submit the form.
We can also customise our products to your specific needs.
