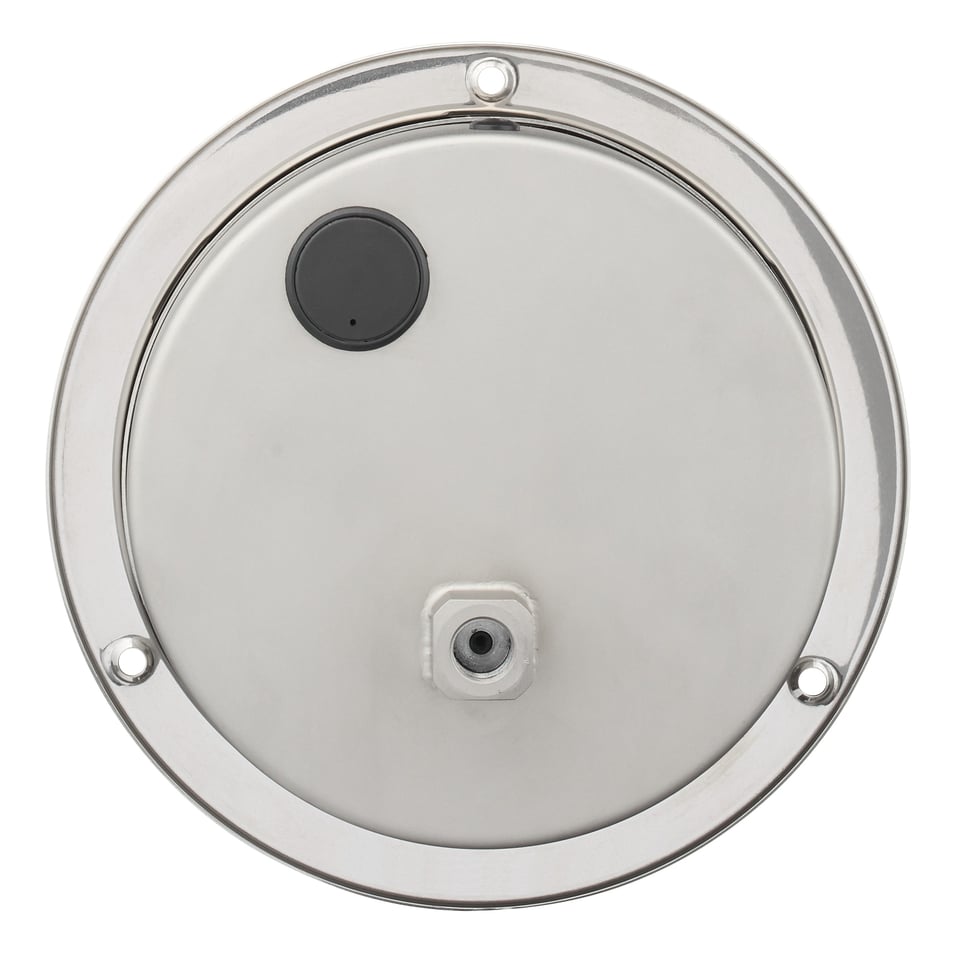

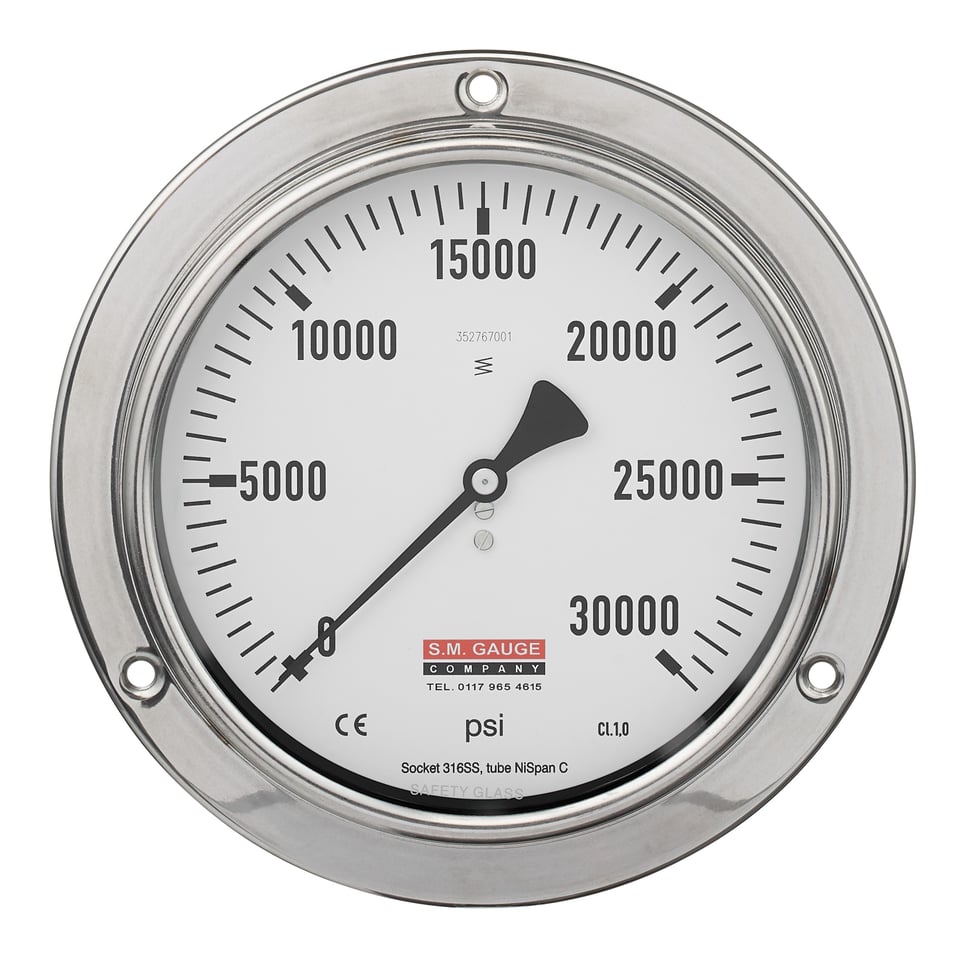

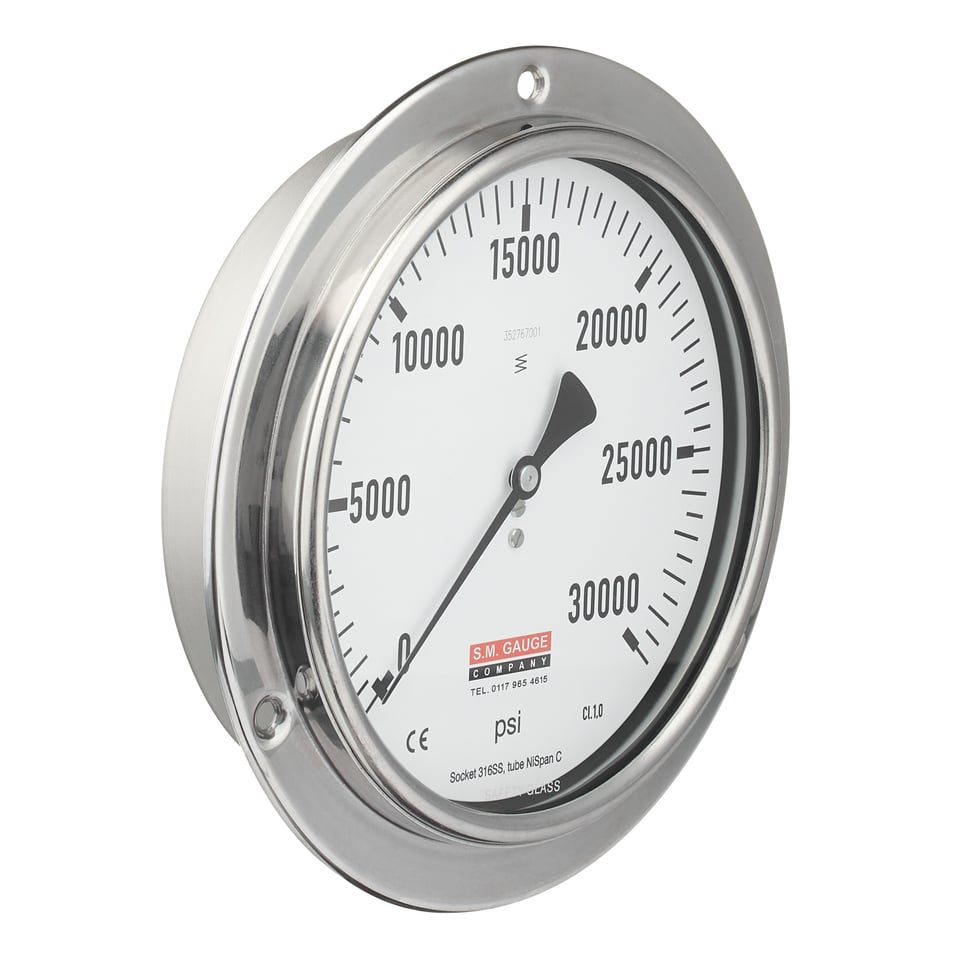

High Range Gauges

Specifically designed for high pressure applications such as water jet cutting, high pressure cleaning. Build in resistance to spikes, shock and vibration from the process.


  • Diameter: 100 & 160mm
  • Pressure ranges: from 2000 to 6000 bar (86,000 psi)
  • Accuracy: ±1.0% FSD
  • Orientation: Bottom or lower rear
  • Connection size: 9/16 - 18 UNF (female) 60° sealing cone
  • Mounting : Direct
  • Case filling: Dry or glycerine
  • Case material: 304 stainless steel
  • Connection material: 316 stainless steel
  • Window: Instrument glass
  • Process temperature: 60°C max
  • Weather protection: IP 65


  • Alternative high pressure threads
  • Increased accuracy
  • Custom ranges/dials
  • Customer logo
  • Alternative mounting options: Panel mount with clamp, surface mount, 3 hole front flange
  • Indicating or max drag pointer

Calibration Notes

  • Traceable to national standards
  • UKAS

If you have any questions, please contact us on +44 (0) 117 965 4615 or visit our enquiry page and submit the form.

We can also customise our products to your specific needs.
